Chain Link Machine
Surface treatment

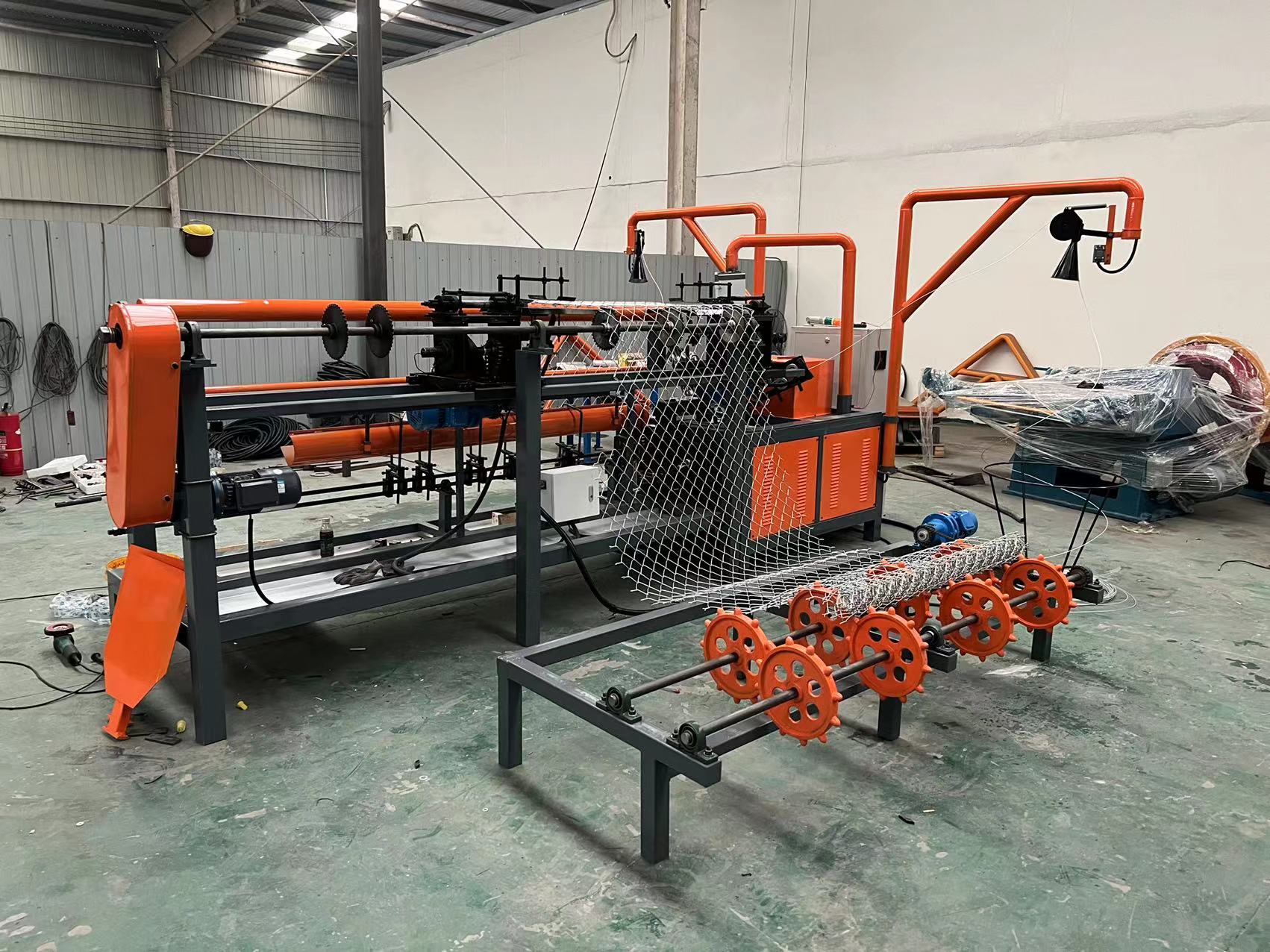

Full automatic chain link fence machine can produce many different hole size of the mesh wisl different molds.The machine is controlled by PLC,we can set the length of the fence by it.There is only one worker control the machine is enough.One set of the machine is including:main machine,weaving machine and mesh roller machine.
Application
Specification
|
Mesh Size（mm） |
30×30-100×100 |
|
Wire Diameter |
1.3-4.0mm |
|
Wire Material |
Galvanized ,PVC coated wire,etc。 |
|
Reed Space/Width |
600-4000mm |
|
Crank RPM |
60-120/min |
|
Engine Power |
9.0KW |
|
Weight |
2.0-5.0TON |
